WHERE CRAFTSMANSHIP MEETS METAL
Advanced contract metal fabrication — design, laser, forming, welding, finishing & delivery across Sydney and Australia.

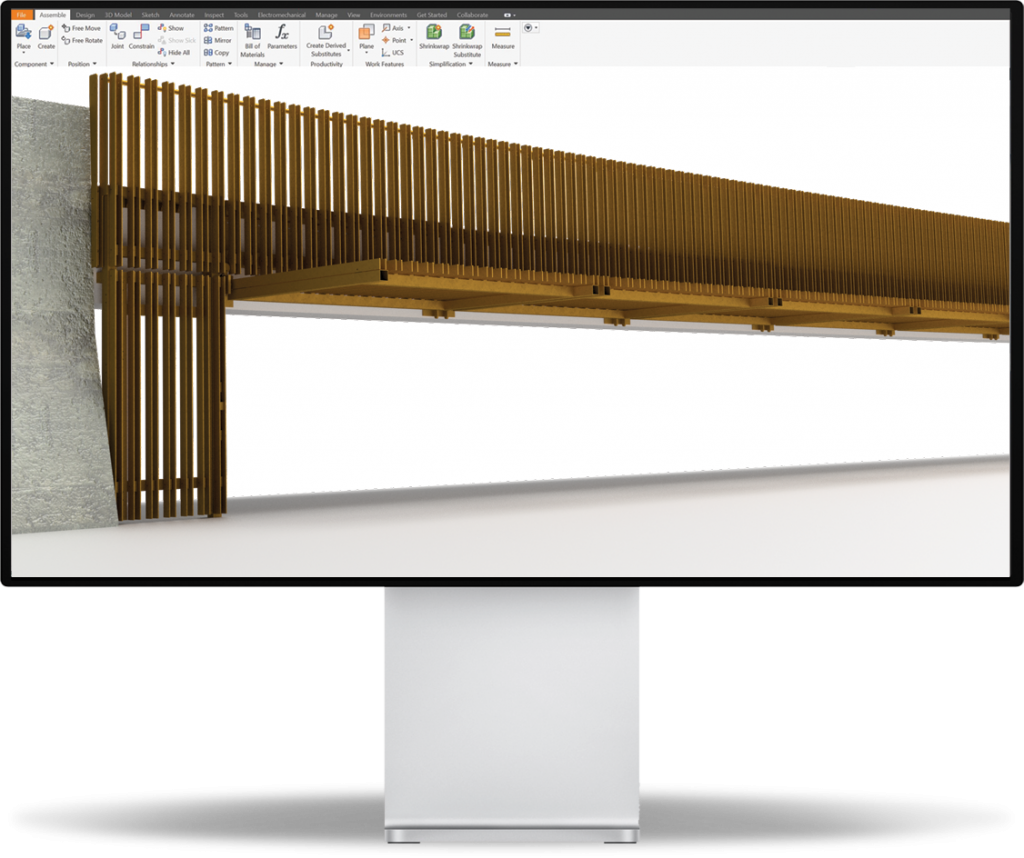

Our Industrial Design team can help you through the design process of your product to ensure the product functions to its best capability.
With our extensive suite of design tools, we provide 3D model designs to confidently realise your concepts.
Rules based engineering is one of our specialties and forms part of this product design process. This allows a single production template to be generated for the creation of further or similar products with all configurable variables, saving you valuable time.

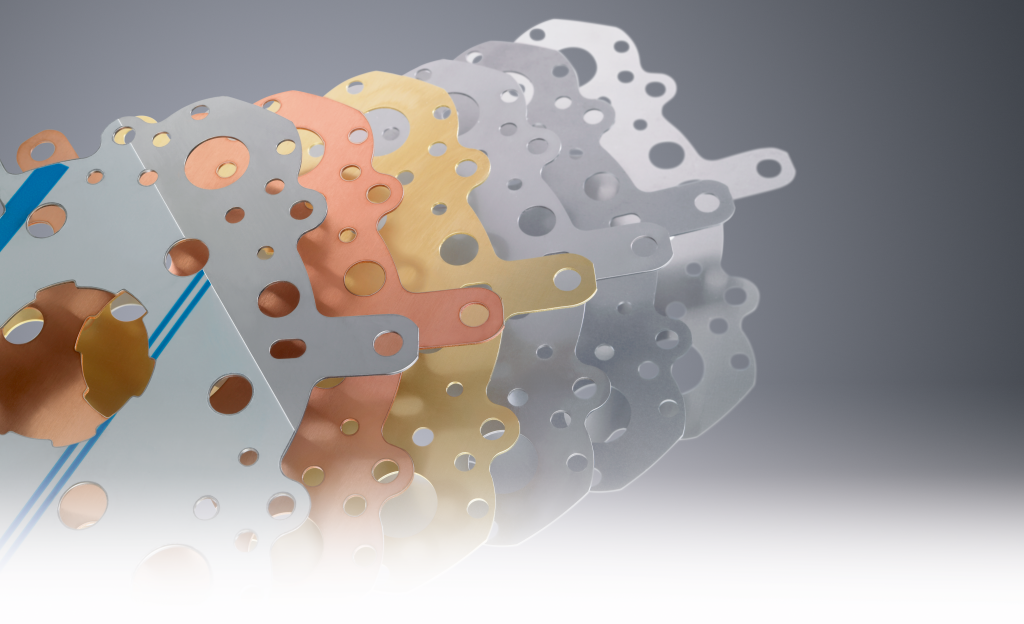

Our extensive range of equipment means we are able to process parts from a wide variety of materials, profiles and thicknesses.
Opie Group is proud to offer large scale robotic welding services with our TruLaser Weld 5000 — the only manufacturing company in the southern hemisphere to do so at this scale. Fine weld points or deep-welded seams across several metres, with expert team support.
| Component | Length | Max loading |
|---|---|---|
| XL size cabin | 8250mm × 4800mm × 3200mm | — |
| Rotate & tilt positioner | 2000mm × 1000mm × 700mm | 400kg |
| Rotary table | 1600mm × 800mm × 1200mm | 250kg |
| Turnover positioner | 4000mm × 1500mm × 1000mm | 1000kg |
Read more about our laser welding capability →
Lightweld technology for small scale and intricate applications — faster production, reduced waste, higher quality.

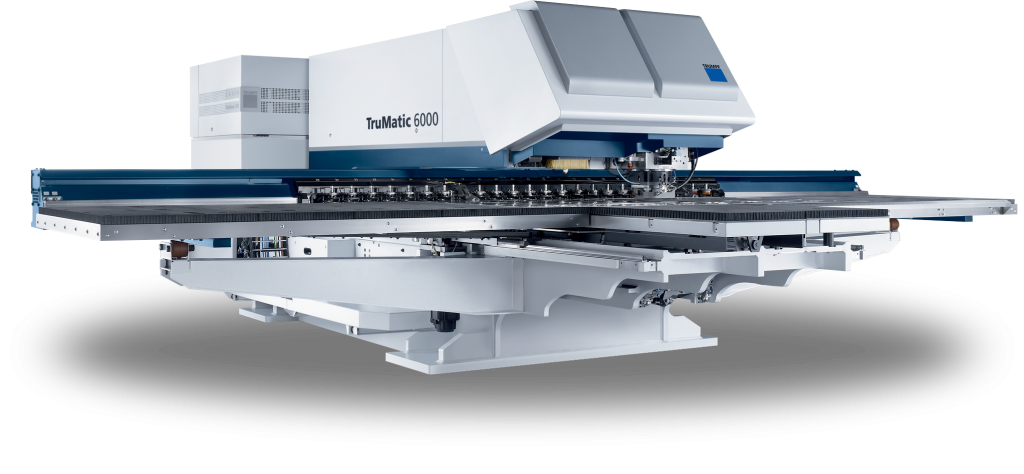

Our “Combo” combines laser cutting, forming and punching. Brush table + descending die for scratch-free surfaces — unique in Australia.
TruMatic 6000: sheets up to 8mm with tapping, countersinking, roller offsetting, weld positioning and louvre tooling.
“Punch it Chewie!” — Punch out swift solutions

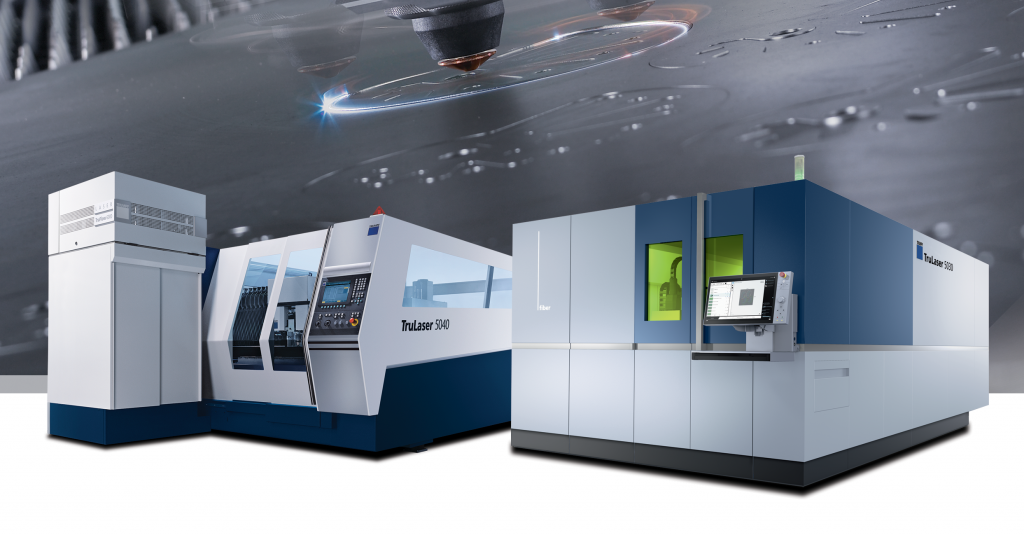

Wide variety of laser cutting machines — 20 hours a day, 6 days a week.
| 5030 6KW Fiber | 5030 8KW Fiber | 5040 6KW | |
|---|---|---|---|
| Max weight | 1100kg | 1100kg | 3200kg |
| Mild steel | 25mm | 25mm | 25mm |
| Stainless steel | 25mm | 40mm | 25mm |
| Aluminium | 25mm | 25mm | 16mm |
| Copper | 10mm | 10mm | — |
| Brass | 10mm | 10mm | — |

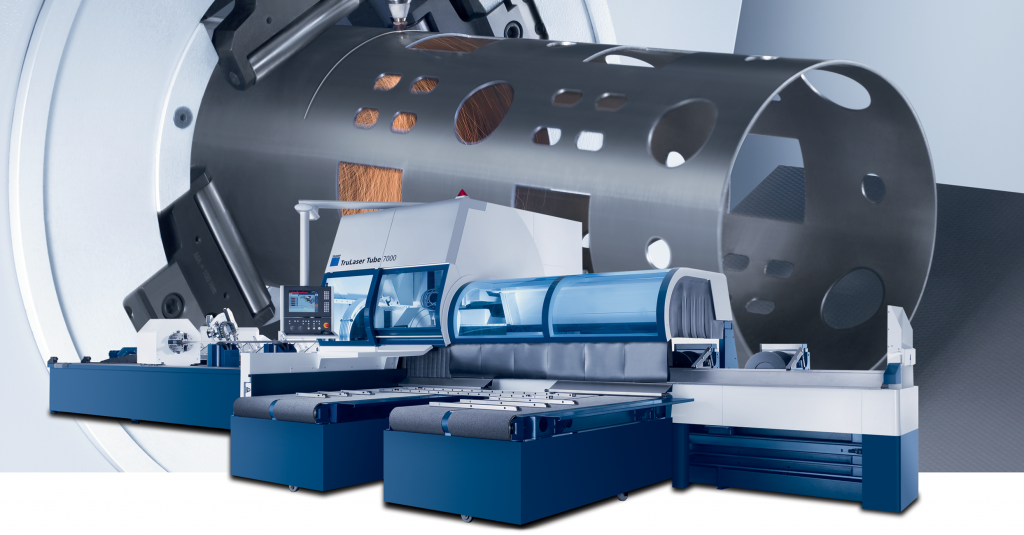

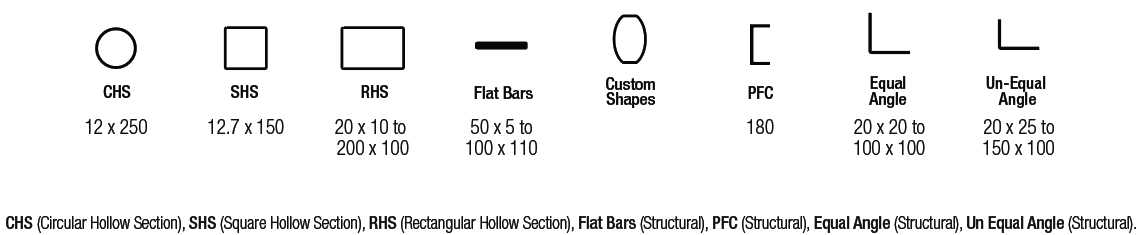

Two TRUMPF TruLaser Tube 7000 systems — wall thicknesses up to 15mm. TruFlow CO2 laser and high-quality cutting data.
| Max wall thickness | Tube length | Finished part length | Work piece weight |
|---|---|---|---|
| Stainless steel — 10mm | 10m max | 9.8m max | 37.5 kg/m |
| Mild steel — 15mm | 10m max | 9.8m max | 7.5 kg/m |
| Aluminium — 6.33mm | 10m max | 9.8m max | 7.5 kg/m |

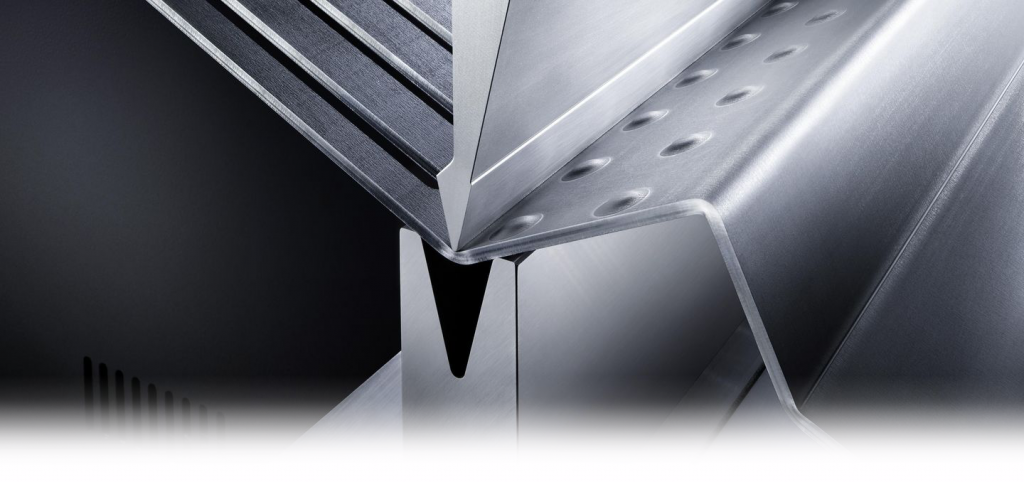

TruBend 7030, 7036, 5170 and 5230 — programmed complex bends with minimal downtime.
| 7030 | 7036 | 5170 | 5230 | |
|---|---|---|---|---|
| Max tonnage | — | 36 tonnes | 170 tonnes | 230 tonnes |
| Bending length | 3123mm | 1020mm | 4250mm | 4250mm |

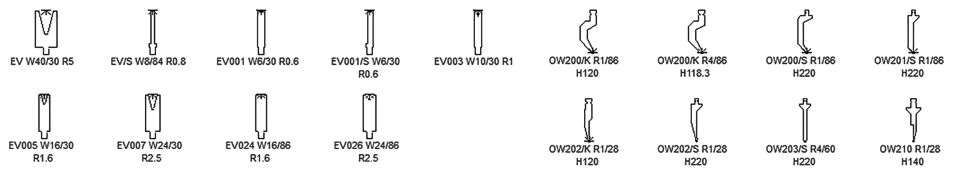

Australia's most extensive tooling range — complex folds under one roof.
Our bends have flex appeal — let's talk →
TIG, MIG, CMT, MMAW, spot & stud — rapid assembly under one roof.
Get sparks of genius with our welding team →
Plate, sheet, tube and section — comprehensive bending and rolling.
| Pre-bending capacity | Rolling capacity | Ø top & bottom rolls | Ø side rolls |
|---|---|---|---|
| 3000mm × 4mm | 3000mm × 7mm | 205mm | 160mm |
| 1550mm × 6mm | 1550mm × 6mm | 160mm | — |
| — | 1220 × 3mm | 60mm | — |

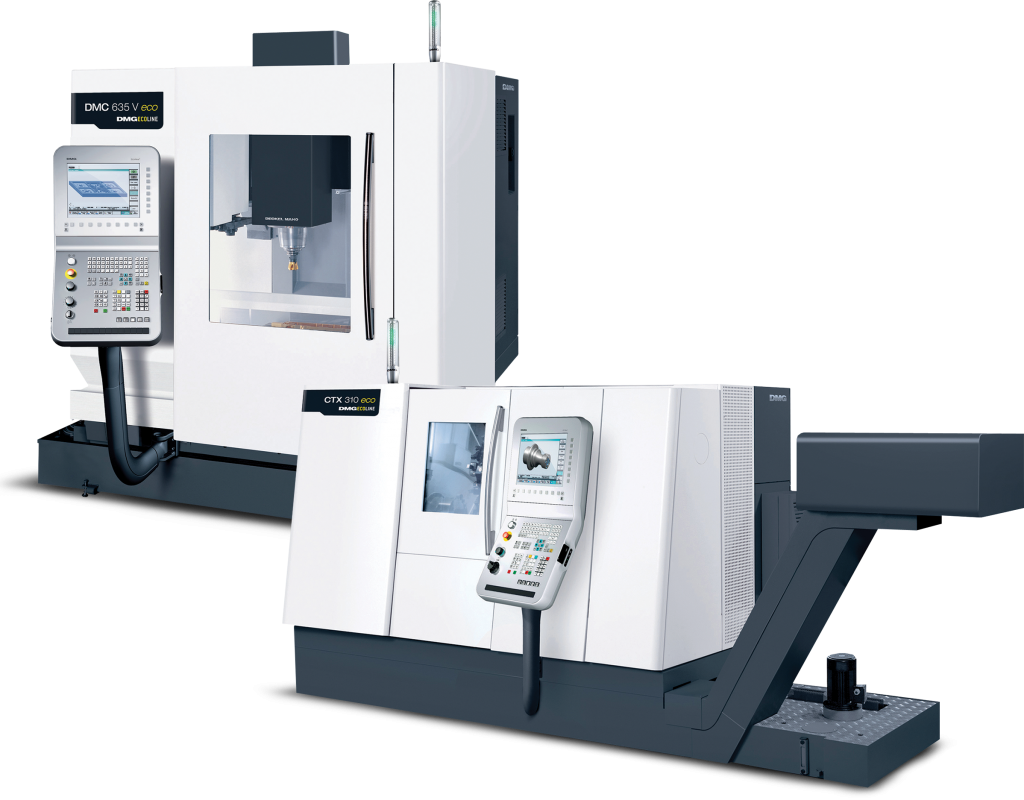

CNC milling & lathe — precision parts and add-on components for assembly.
Large format CNC router up to 6.5m × 2.2m — aluminium up to 25mm, timber, acrylic & plastics, nylon & composites up to 40mm.
Pemserter — self clinching fasteners, studs, nuts, inserts for rapid assembly.
Grindingmaster 2200 — capacity up to 900mm wide.
TruMark 5000 — label, number or code on metal, plastic or wood.

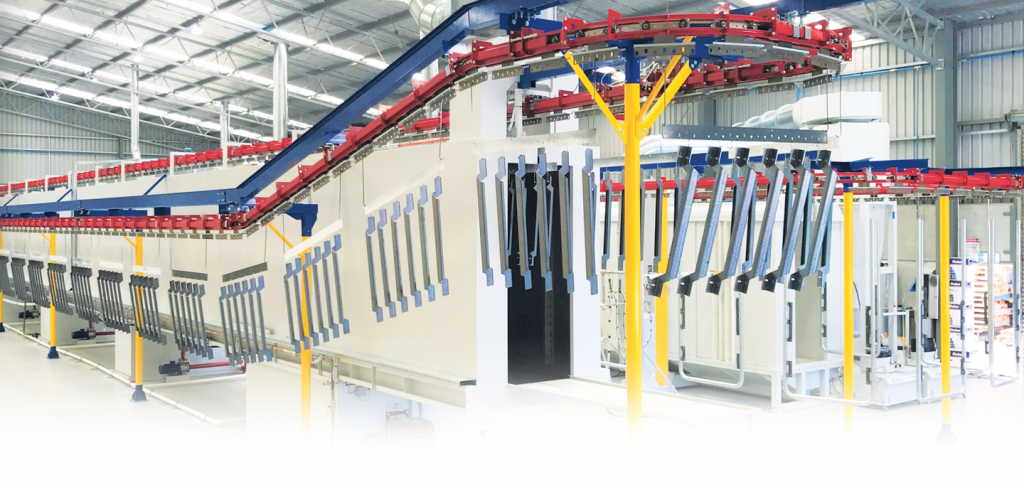

State of the art facility in Emu Heights. All metals — aluminium, mild steel (raw, zinc or galvanised) and stainless steel. Rapid lead times, competitive rates.
Maximum capacity: weight 150 kg/m · length 4600mm · height 1800mm · width 700mm
Approved applicators: Akzo Nobel (Interpon) and Dulux Powder & Industrial Coatings — warranties up to 20 years where required.
Press for a price on powder coat →
On-site storage, pick-up or delivery with our own transport. On-site installation and welding managed by our builders and fabricators.
From design through to powder coat and delivery — talk to the OPIE team today.
